Description

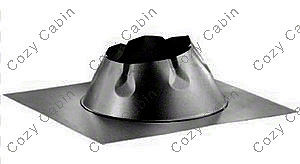

8DP-FF is a tall cone ventilated galvalume flat roof flashing. The flat roof flashing has a 8 inch diameter and is used with DuraPlus triple wall pipe. DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations.
Applications
DuraPlus Chimney is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
Materials and Construction
.016″ 430 stainless steel outer wall or .018″ galvanized steel outer wall.
.018″ aluminized steel intermediate liner.
.016″ 430 stainless steel inner liner.
Insulated layers of ceramic blanket plus ventilated air space. Locks tightly with a precision twist-lock connection.
Clearances
2″ clearance to combustibles.
Listings
UL Listed to UL 103HT (MH7399)
Genuine OEM part
Click to Download Catalog
Click to Download Installation Instructions
Click to Download FAQ
Specifications
Part Type: |
Flashing |
Fuel: |
Wood |
Style: |
8DP |
Color: |
Galvalume |
Unit: |
Triple Wall Pipe |
Width: |
8 |
